POWER

700W RMS 4 ohm, 350W 8 ohm

DIMENSIONS

Dimensions: 24 x 20 x 5 cm

Weight: 2,1 Kg

PLUS

- VU meter led
- 9 Volt Output pedal effects
- Switch fan on/off noiseless
- Subsonic filter for woofer protection
- Color: black (other colours available on request)
- Panel+logo: brushed aluminium with possibility of colours customization

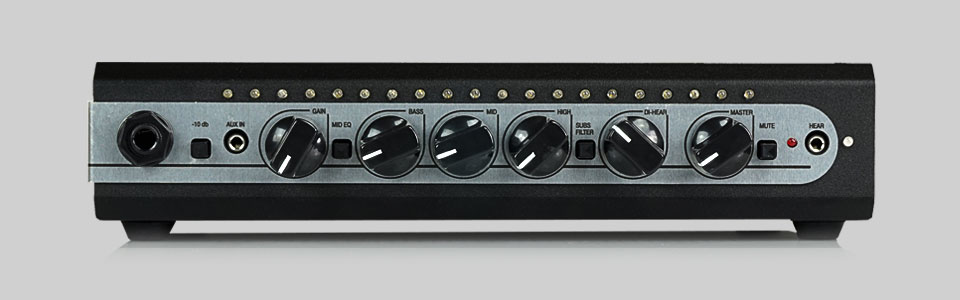

FRONT PANEL

- Input
- V meter dot bar
- -10 db
- Aux In
- Gain
- Mid Eq
- Bass
- Mid Frequency 400-800 hz
- High
- Sub Filter
- Volume DI / headphone
- Master
- Mute
- Led mute
- Out headphone

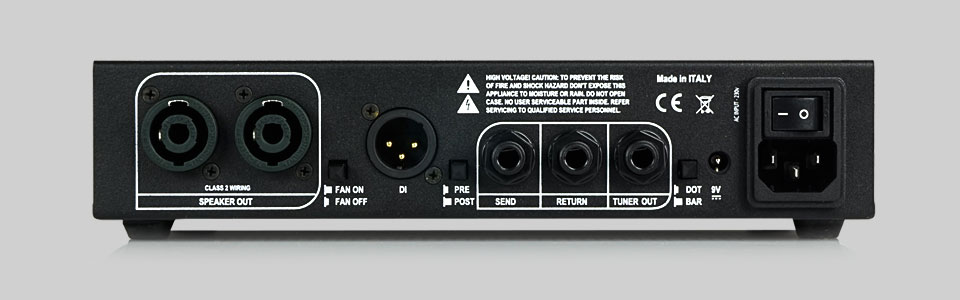

REAR PANEL

- Input 230-115v (auto selectable)
- 9 Volt
- Tuner Out
- Send/Return
- Pre/Post DI
- DI Output
- Speakon/Jack Outputs

USER MANUAL

MAIN DIFFERENCES GR300 GR300+ GR700s2 GR700+
Power 300w 300w 700w 700w
V meter dot bar
Aux in
Headphone out
9 Volt Output pedal effects
Send/Return
Switch fan on/off noiseless fanless fanless
Speakon double outputs
Tuner out
